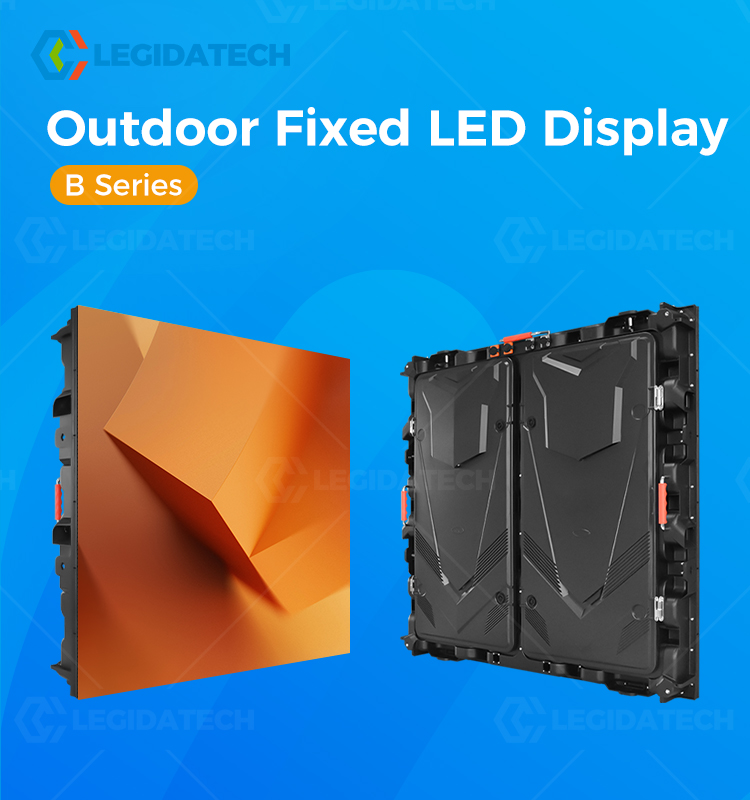

Outdoor Fixed LED Display

/P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen
P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen

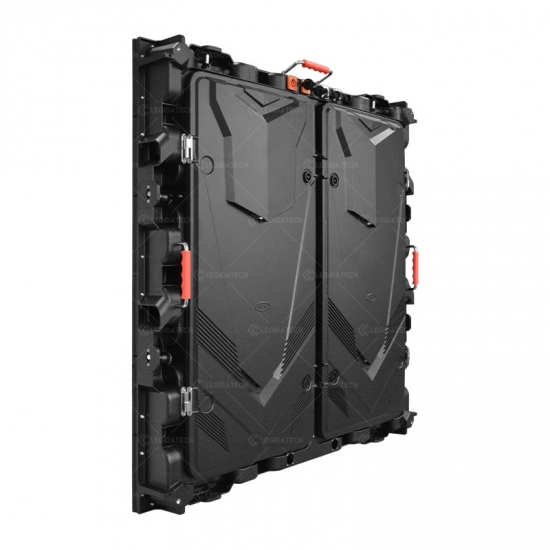

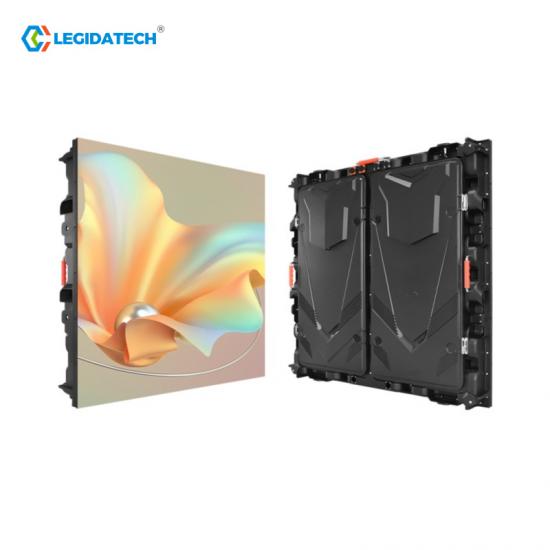

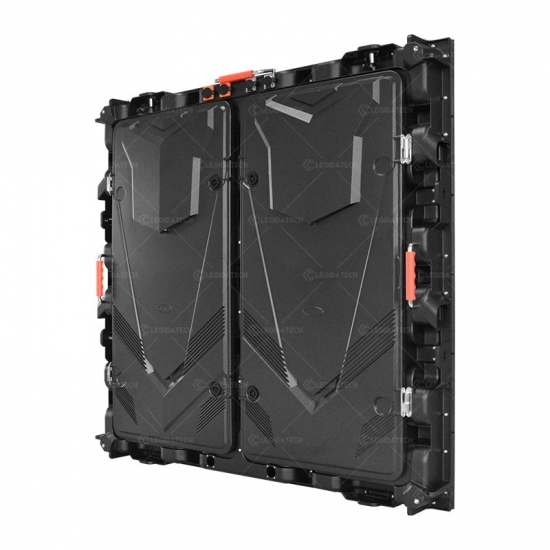

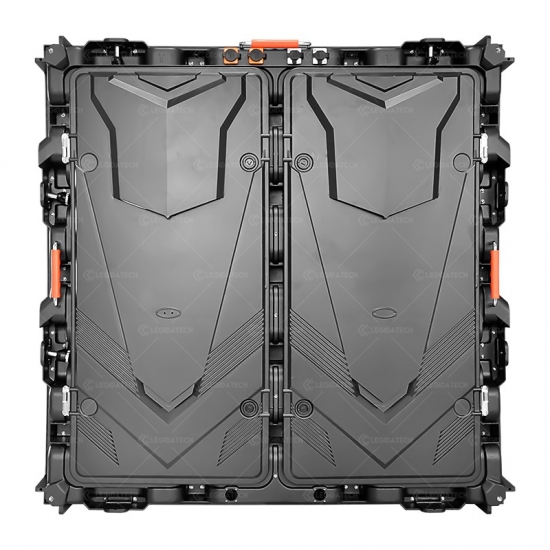

P2.5 P3 P4 P5 P6 P8 P10 Outdoor LED Billboard Screen

Pixel Pitch: P2.5 / P3 / P4mm / P5mm / P6mm / P8mm / P10mm

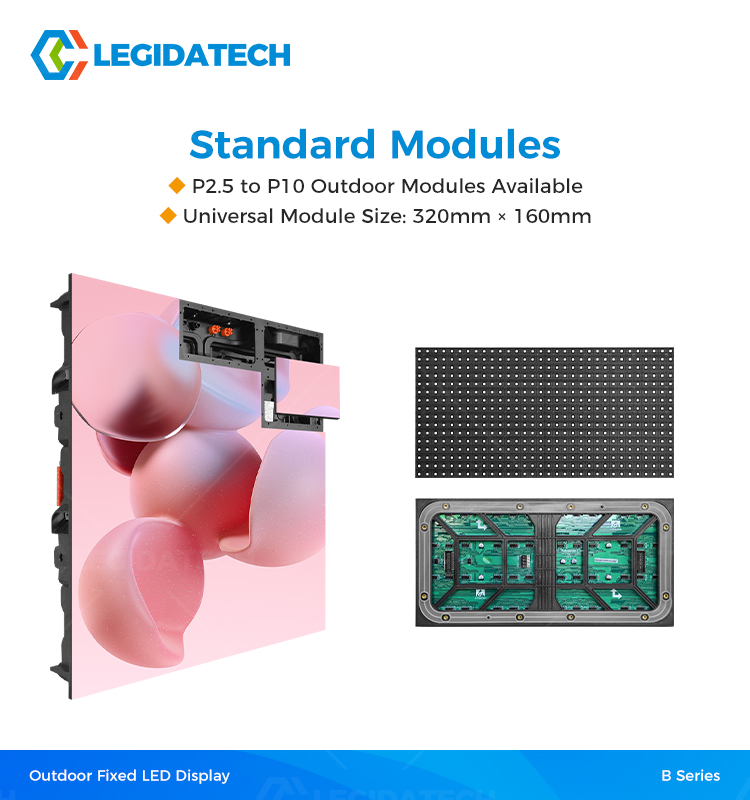

Module Size: 320mm×160mm

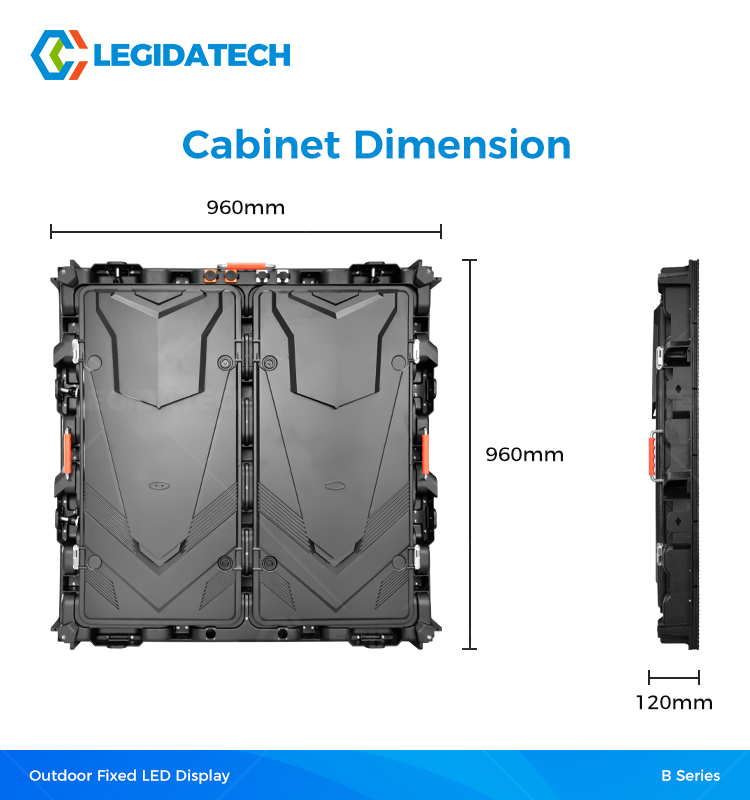

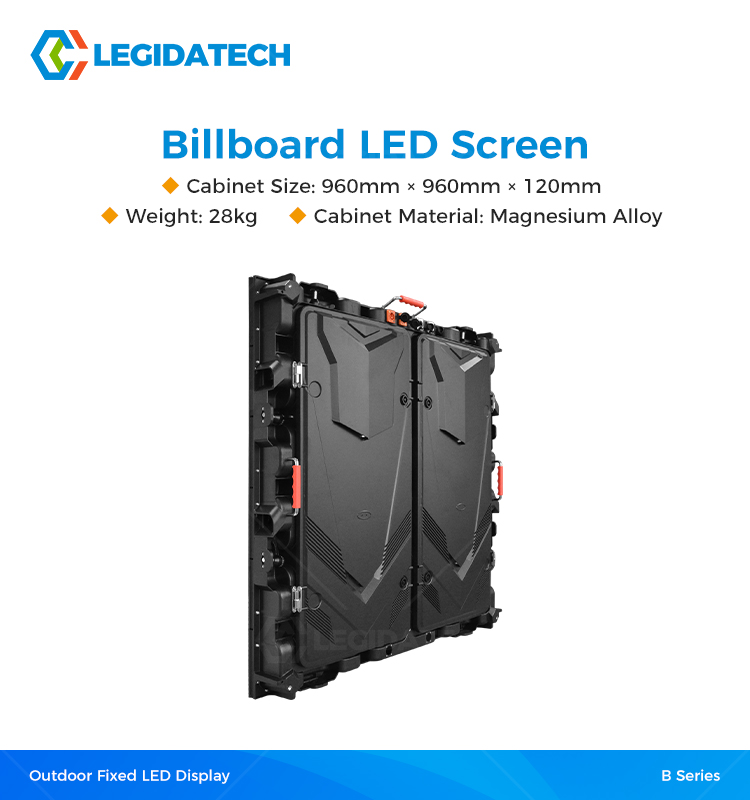

Cabinet Size (W×H×T): 960mm×960mm×120mm

Pixel Configuration: SMD

Refresh Rate: 1920Hz / 3840Hz

Product Material: Magnesium

Viewing Angle: 140/140 degree

Power Consumption (Avg./Max.): 300W / 800W

IP Rate: IP65

Panel Weight: 28KG

Inquiry Now
+86 181 4617 4271
Features

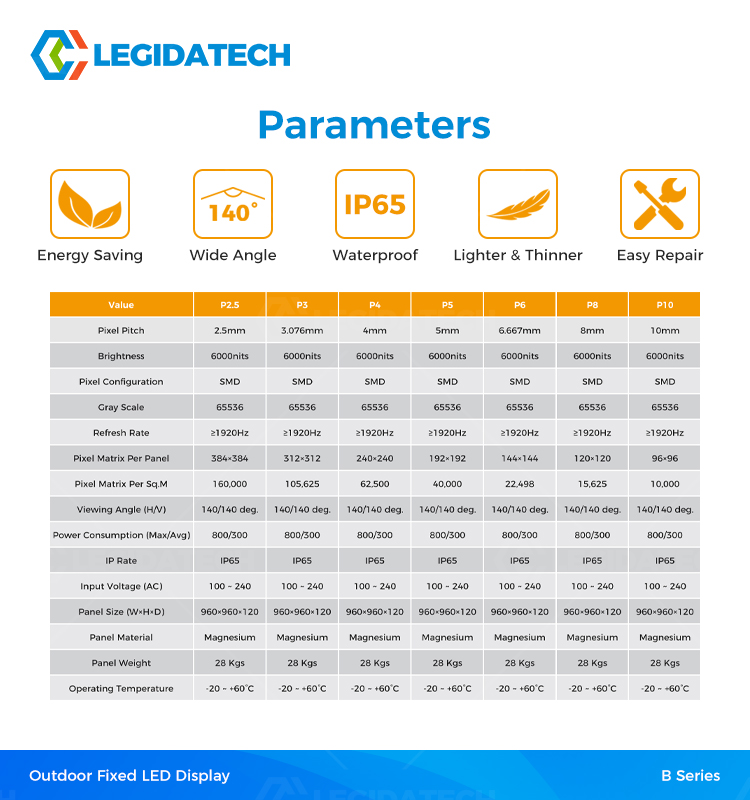

Parameters
Value P2.5 P3 P4 P5 P6 P8 P10
Pixel Pitch 2.5mm 3.076mm 4mm 5mm 6.667mm 8mm 10mm
Brightness 6000nits 6000nits 6000nits 6000nits 6000nits 6000nits 6000nits
Pixel Configuration SMD SMD SMD SMD SMD SMD SMD
Gray Scale 65536 65536 65536 65536 65536 65536 65536
Refresh Rate ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz ≥1920Hz
Pixel Matrix Per Panel 384*384 312*312 240*240 192*192 144*144 120*120 96*96
Pixel Matrix Per Sq.M 160,000 105,625 62,500 40,000 22,498 15,625 10,000
Viewing Angle (H/V) 140/140 deg. 140/140 deg. 140/140 deg. 140/140 deg. 140/140 deg. 140/140 deg. 140/140 deg.
Power Consumption (Max/Avg) 800/300 800/300 800/300 800/300 800/300 800/300 800/300
IP Rate IP65 IP65 IP65 IP65 IP65 IP65 IP65
Input Voltage (AC) 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240 100 ~ 240
Panel Size (W*H*D) 960*960*120mm 960*960*120mm 960*960*120mm 960*960*120mm 960*960*120mm 960*960*120mm 960*960*120mm
Panel Material Magnesium Magnesium Magnesium Magnesium Magnesium Magnesium Magnesium
Panel Weight 28 Kgs 28 Kgs 28 Kgs 28 Kgs 28 Kgs 28 Kgs 28 Kgs
Operating Temperature -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C -20 ~ +60°C
